C7 – New Participant Data Access Report
C7 report details
|
Purpose |
Details certain NMI Standing Data for a nominated new party in a proposed change request. |
|
Content |
Limited to participants nominated on the Change Request as a new party. |
|
Request |
Anytime from:
|
|
Delivery |
Participant Outbox |
|
Context type |
NewParticipantAccess |
|
Priority |
Medium |
|
Role |
Participant access is limited to participants nominated on the change request as a new party MC, FRMP, LR, LNSP, ENM, NSP2, MPB, MPC, MDP |
|
Format |
Zipped aseXML compliant XML message with csv payload |
|
Row limit |
TBA |
|
Schema version |
r35 |
|
User rights access |
Batch and Interactive: C4 - NMI Master Report |

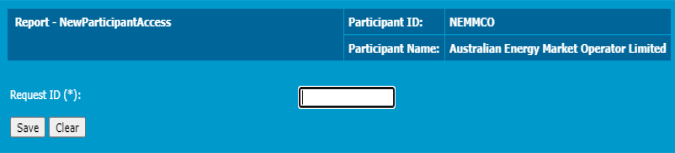

Input parameters
|
Field |
Description |
Browser |
Schema |
|---|---|---|---|
|
Request ID |
A valid change request ID |
Mandatory |
Mandatory |
Report Output
Some or all of the following information is included in the report:
- Jurisdiction participating jurisdiction (defined in the NER) code
- TNI Code Transmission Node Identity: A four character alpha-numeric code used to identify a virtual transmission node or transmission network connection point.
- DLF Code A code used in MSATS to identify a distribution loss factor.
- Address
- NMI Status A code identifying the status of a NMI, for example active or inactive. code
- Current The participant can receive files compliant to the current aseXML version. roles
For each metering installation, the:
- Meter Serial Number
- Meter Installation Type
- Next Scheduled Read Date The date of the next scheduled meter read to be undertaken by the current MDP or MPC, see MSATS Procedures: CATS Procedures.
For more details about the fields, see Standing Data for MSATS Market Settlement and Transfer Solutions. The procedures published by AEMO under clause 7.2.8 of the National Electricity Rules, which include those governing the recording of financial responsibility for energy flows at a connection point, the transfer of that responsibility between market participants, and the recording of energy flows at a connection point..
|
MSATS name |
Data item description |
MSATS standing data table |
|---|---|---|
|
Address |
This includes all address fields: DPID, building name, flat number, flat type, floor number, floor type, house number, house number suffix, location descriptor, Lot number, street name, street suffix, street type, postcode, locality, and state. |
CATS_NMI_DATA |
|
ADL |
The electrical energy delivered through a connection point or metering point over an extended period normalised to a “per day” basis (kWh). |
CATS_NMI_DATA_STREAM |
|
Controlled Load |
Indicates if the energy recorded by this register is created under a Controlled Load regime. Has No if the register does not relate to a Controlled Load, otherwise there is a description |
CATS_REGISTER_IDENTIFIER |
|
Customer Classification Code |
Consumer class |
CATS_NMI_DATA |
|
Customer Threshold Code |
Consumption threshold |
CATS_NMI_DATA |
|
DatastreamStatus Code |
Status for each MDM Datastream |
_NMI_DATA_STREAM |
|
Datastream Type |
The type of data the Datastream reports, e.g. interval and accumulation |
CATS_NMI_DATA_STREAM |
|
DLF Code |
A code representing the DLF |
CATS_NMI_DATA |
|
Jurisdiction Code |
NMI Jurisdiction |
CATS_NMI_DATA |
|
FRMP |
FRMP identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
LNSP |
LNSP identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
LR |
LR identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
MDP |
MDP (Category D) identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
Meter Serial ID |
Meter serial number for a NMI |
CATS_METER_REGISTER |
|
Metering Installation Type Code |
Metering Installation Type, e.g. Basic |
CATS_METER_REGISTER |
|
MPB |
MP (Category B) identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
MPC |
MDP (Category C) identity |
CATS_NMI_PARTICIPANT_RELATIONS |
|
Multiplier |
Multiplier required to take a register value and turn it into a value representing billable energy |
CATS_REGISTER_IDENTIFIER |
|
Network Tariff Code |
A code representing the Network Tariff |
CATS_REGISTER_IDENTIFIER |
|
Next Scheduled Read Date |
The NSRD in date format |
CATS_METER_REGISTER |
|
NMI Classification Code |
NMI classification |
CATS_NMI_DATA |
|
NMI Status Code |
NMI status |
CATS_NMI_DATA |
|
Register ID |
The register ID of the register that the Network Tariff Code and Network Tariff Code additional information refers to |
CATS_REGISTER_IDENTIFIER |
|
Register Identifier Status Code |
A lookup code to indicate if register is active |
CATS_REGISTER_IDENTIFIER |
|
ROLR |
A code representing the identity of the ROLR |
CATS_NMI_PARTICIPANT_RELATIONS |
|
RP |
A code representing the identity of the MC. |
CATS_NMI_PARTICIPANT_RELATIONS |
|
Time Of Day |
Industry developed Codes to identify the time validity of register contents |
CATS_REGISTER_IDENTIFIER |
|
TNI Code |
A code representing the transmission node identifier |
CATS_NMI_DATA |
|
Unit of Measure |
A code to identify the Unit of Measure (UOM) for data held in this register |
CATS_REGISTER_IDENTIFIER |
C7 example
<?xml version="1.0"?>
-<ase:aseXML xsi:schemaLocation="urn:aseXML:r43 http://www.nemmco.com.au/aseXML/schemas/r43/aseXML_r43.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ase="urn:aseXML:r43">
-<Header>
<From description="Australian Energy Market Operator Limited">NEMMCO</From>
<To description="Australian Energy Market Operator Limited">NEMMCO</To>
<MessageID>NEMMCO-MSG-660175258</MessageID>
<MessageDate>2023-08-14T10:47:10+10:00</MessageDate>
<TransactionGroup>CATS</TransactionGroup>
<Priority>Medium</Priority>
<SecurityContext>NEMMCOBATCH</SecurityContext>
<Market>NEM</Market>
</Header>
-<Transactions>
-<Transaction initiatingTransactionID="31581714" transactionDate="2023-08-14T10:47:10+10:00" transactionID="CATS-660175258">
-<ReportResponse version="r39">
+<ReportParameters xsi:type="ase:CATSNewParticipantAccessReportParameters">
-<ReportResults xsi:type="ase:CATSNewParticipantAccessReportFormat">
-<NMIStandingData version="r43" xsi:type="ase:ElectricityStandingData">
<NMI>2001005277</NMI>
-<MasterData>
<JurisdictionCode>NSW</JurisdictionCode>
<TransmissionNodeIdentifier>AQB2</TransmissionNodeIdentifier>
<DistributionLossFactorCode>AL00</DistributionLossFactorCode>
-<Address>
-<StructuredAddress>
-<FlatOrUnit>
<FlatOrUnitType>APT</FlatOrUnitType>
<FlatOrUnitNumber>306</FlatOrUnitNumber>
</FlatOrUnit>
-<FloorOrLevel>
<FloorOrLevelType>FL</FloorOrLevelType>
<FloorOrLevelNumber>3</FloorOrLevelNumber>
</FloorOrLevel>
<BuildingOrPropertyName>2</BuildingOrPropertyName>
<LocationDescriptor>BALMORAL ST</LocationDescriptor>
-<House>
<HouseNumber>51</HouseNumber>
<HouseNumberSuffix>3</HouseNumberSuffix>
<HouseNumberTo>53</HouseNumberTo>
</House>
-<Lot>
<LotNumber>51</LotNumber>
<DPNumber>A DP NUMBER</DPNumber>
</Lot>
-<Street>
<StreetName>BALMORAL</StreetName>
<StreetType>ST</StreetType>
<StreetSuffix>W</StreetSuffix>
</Street>
</StructuredAddress>
<SuburbOrPlaceOrLocality>WAITARA</SuburbOrPlaceOrLocality>
<StateOrTerritory>NSW</StateOrTerritory>
<PostCode>2077</PostCode>
</Address>
<Status>A</Status>
<CustomerClassificationCode>BUSINESS</CustomerClassificationCode>
<CustomerThresholdCode>MEDIUM</CustomerThresholdCode>
<TransmissionNodeIdentifier2>NBFS</TransmissionNodeIdentifier2>
<MeterMalfunctionExemptionNumber>223434</MeterMalfunctionExemptionNumber>
<MeterMalfunctionExemptionExpiryDate>0023-07-11</MeterMalfunctionExemptionExpiryDate>
</MasterData>
-<RoleAssignments>
-<RoleAssignment>
<Party>ETSAPMP</Party>
<Role>MPB</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>ETSAMDP</Party>
<Role>MPC</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>ETSAUTIL</Party>
<Role>ROLR</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>ETSAMDP</Party>
<Role>MDP</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>UMPLP</Party>
<Role>LNSP</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>AGLE</Party>
<Role>LR</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>UMPLP</Party>
<Role>RP</Role>
</RoleAssignment>
-<RoleAssignment>
<Party>SOLARIS</Party>
<Role>FRMP</Role>
</RoleAssignment>
</RoleAssignments>
-<DataStreams>
-<DataStream>
<Suffix>21</Suffix>
<AveragedDailyLoad>68</AveragedDailyLoad>
<DataStreamType>Consumption</DataStreamType>
<Status>A</Status>
</DataStream>
-<DataStream>
<Suffix>11</Suffix>
<AveragedDailyLoad>100</AveragedDailyLoad>
<DataStreamType>Consumption</DataStreamType>
<Status>A</Status>
</DataStream>
</DataStreams>
-<MeterRegister>
-<Meter>
<SerialNumber>125667</SerialNumber>
<NextScheduledReadDate>2016-05-16</NextScheduledReadDate>
<InstallationTypeCode>BASIC</InstallationTypeCode>
<Manufacturer>LANDIS AND GYR</Manufacturer>
<Model>ML262xdf6</Model>
<TestResult>PASS</TestResult>
<Status>C</Status>
<CurrentTransformerLocation>current_tx_location...................VARCHAR2(50)</CurrentTransformerLocation>
<CurrentTransformerType>ct_type.VARCHAR2(20)</CurrentTransformerType>
<CurrentTransformerRatioAvailable>current_tx_ratio_available............VARCHAR2(50)</CurrentTransformerRatioAvailable>
<CurrentTransformerRatioConnected>ct_ratio_connected20</CurrentTransformerRatioConnected>
<CurrentTransformerAccuracyClass>current_tx_accuracy_class.............VARCHAR2(50)</CurrentTransformerAccuracyClass>
<CurrentTransformerTest>ct_test..VARCHAR220)</CurrentTransformerTest>
<CurrentTransformerTestDate>2022-08-12</CurrentTransformerTestDate>
-<GPSCoordinates>
<Latitude>-34.1234567</Latitude>
<Longitude>151.1234567</Longitude>
</GPSCoordinates>
<VoltageTransformerLocation>voltage_tx_location...................VARCHAR2(50)</VoltageTransformerLocation>
<VoltageTransformerType>voltage_tx_type.......................VARCHAR2(50)</VoltageTransformerType>
<VoltageTransformerRatio>voltage_tx_ratio......................VARCHAR2(50)</VoltageTransformerRatio>
<VoltageTransformerAccuracyClass>vt_accuracy_class20)</VoltageTransformerAccuracyClass>
<VoltageTransformerTest>vt_test.VARCHAR2(20)</VoltageTransformerTest>
<VoltageTransformerTestDate>2022-08-12</VoltageTransformerTestDate>
</Meter>
-<Meter>
<SerialNumber>125667</SerialNumber>
-<RegisterConfiguration>
-<Register>
<RegisterID>2</RegisterID>
<NetworkTariffCode>MB2R</NetworkTariffCode>
<UnitOfMeasure>KWH</UnitOfMeasure>
<TimeOfDay>OFFPEAK</TimeOfDay>
<Multiplier>1</Multiplier>
<Status>C</Status>
</Register>
</RegisterConfiguration>
</Meter>
</MeterRegister>
</NMIStandingData>
</ReportResults>
-<Event severity="Information">
<Code>0</Code>
<Explanation>Success</Explanation>
</Event>
</ReportResponse>
</Transaction>
</Transactions>
</ase:aseXML>
