RM26 - MDP Substitution and Estimation
RM26 report details
|
Purpose |
Provides details of substitutions and estimations still current for a specified Settlement week |
|
Content |
A list of NMI Data Stream suffixes having an active Meter reading with a quality flag of substitute (S) or estimate (E) for each Settlement day within the request period |
|
Request |
Scheduled weekly (Sunday) after the approval of each Settlement run. Contact the Support Hub to request the automated report Anytime from:
|
|
Delivery |
Participant Outbox |
|
Context type |
SubstitutionEstimation |
|
Priority |
Medium |
|
Role |
MDP |
|
Format |
aseXML compliant XML message in a ZIP file |
|
Row limit |
10,000 |
|
Schema version |
n/a |
|
User rights access |
Batch and Interactive: RM26 - MDP Substitution and Estimation |

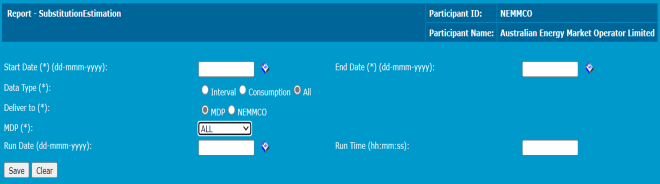

Input parameters
|
Field |
Description |
Web |
Schema |
|---|---|---|---|
|
Report Name |
Name of report |
N |
M |
|
Maximum Rows |
Max rows to report |
N |
O |
|
Start Date |
Start date of data (max = 400 days) |
M |
M |
|
End Date |
End date of data (max = today) |
M |
M |
|
Data Type |
Interval, Consumption or All Default = All |
M |
M |
Output
Interval output
|
Field |
Description |
|---|---|
|
NMI |
NMIs for the Settlement run |
|
Suffix |
Datastream suffix |
|
Settlement Date |
Period Settlement date |
|
As At Date |
The date and time the report runs |
|
Filtered by |
None |
|
Grouped by |
None |
|
Ordered by |
|
Accumulation output
|
Field |
Description |
|---|---|
|
NMI |
NMIs for the Settlement run |
|
Suffix |
Datastream suffix |
|
Start Date |
The start of the Settlement period |
|
End Date |
The end of the Settlement period |
|
As At Date |
The date and time the report runs |
|
Filtered by |
None |
|
Grouped by |
None |
|
Ordered by |
|
RM26 interval example
<ase:aseXML xmlns:ase="urn:aseXML:r31" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="urn:aseXML:r31 http://www.nemmco.com.au/aseXML/schemas/r31/aseXML_r31.xsd">
<Header>
<From description="Australian Energy Market Operator Limited">NEMMCO</From>
<To description="Power Network - MDP">MDP123</To>
<MessageID>NEMMCO-MSG-654465659</MessageID>
<MessageDate>2017-05-01T16:00:24+10:00</MessageDate>
<TransactionGroup>MDMT</TransactionGroup>
<Priority>Medium</Priority>
<SecurityContext>NEMMCOBATCH</SecurityContext>
<Market>NEM</Market>
</Header>
<Transactions>
<Transaction transactionID="MDMT-654465659" transactionDate="2017-05-01T16:00:24+10:00" initiatingTransactionID="30791372">
<ReportResponse version="r10">
<ReportParameters xsi:type="ase:GenericReportParameters">
<ReportName>SubstitutionEstimation</ReportName>
<Parameters>
<Parameter xsi:type="ase:DateParameter">
<Name>FromDate</Name>
<Value>2016-03-28</Value>
</Parameter>
<Parameter xsi:type="ase:DateParameter">
<Name>ToDate</Name>
<Value>2016-03-31</Value>
</Parameter>
<Parameter xsi:type="ase:StringParameter">
<Name>DataType</Name>
<Value>Interval</Value>
</Parameter>
<Parameter xsi:type="ase:StringParameter">
<Name>MDP</Name>
<Value>MDP123</Value>
</Parameter>
<Parameter xsi:type="ase:IntegerParameter">
<Name>LastSequenceNumber</Name>
<Value>0</Value>
</Parameter>
</Parameters>
</ReportParameters>
<ReportResults xsi:type="ase:CSVReportFormat">
<CSVData>NMI,SFX,SettDate,FRMP,LR,MDP,FLAG 2001007812,N1,2016/03/28,FRMP1,LR1,MDP123,SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS 2001007812,N1,2016/03/29,FRMP1,LR1,MDP123,SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS 2001007812,N1,2016/03/30,FRMP1,LR1,MDP123,SSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS
etc.
etc.
etc.
</CSVData>
</ReportResults>
<Event severity="Information">
<Code>0</Code>
<Explanation>Success.</Explanation>
</Event>
</ReportResponse>
</Transaction>
</Transactions>
</ase:aseXML>RM26 Accumulation example
<ase:aseXML xmlns:ase="urn:aseXML:r31" xmlns:xsi="http://www.w3.org/XXXX/XMLSchema-instance" xsi:schemaLocation="urn:aseXML:r31 http://www.nemmco.com.au/aseXML/schemas/r31/aseXML_r31.xsd">
<Header>
<From description="Australian Energy Market Operator Limited">NEMMCO</From>
<To description="SA Power Networks - MDP">MDP123</To>
<MessageID>NEMMCO-MSG-654465657</MessageID>
<MessageDate>2017-05-01T15:48:21+10:00</MessageDate>
<TransactionGroup>MDMT</TransactionGroup>
<Priority>Medium</Priority>
<SecurityContext>NEMMCOBATCH</SecurityContext>
<Market>NEM</Market>
</Header>
<Transactions>
<Transaction transactionID="MDMT-654465657" transactionDate="2017-05-01T15:48:21+10:00" initiatingTransactionID="30791371">
<ReportResponse version="r10">
<ReportParameters xsi:type="ase:GenericReportParameters">
<ReportName>SubstitutionEstimation</ReportName>
<Parameters>
<Parameter xsi:type="ase:DateParameter">
<Name>FromDate</Name>
<Value>2016-05-10</Value>
</Parameter>
<Parameter xsi:type="ase:DateParameter">
<Name>ToDate</Name>
<Value>2016-05-16</Value>
</Parameter>
<Parameter xsi:type="ase:StringParameter">
<Name>DataType</Name>
<Value>Consumption</Value>
</Parameter>
<Parameter xsi:type="ase:StringParameter">
<Name>MDP</Name>
<Value>MDP123</Value>
</Parameter>
<Parameter xsi:type="ase:IntegerParameter">
<Name>LastSequenceNumber</Name>
<Value>0</Value>
</Parameter>
</Parameters>
</ReportParameters>
<ReportResults xsi:type="ase:CSVReportFormat">
<CSVData>NMI,SFX,START_DTE,END_DTE,FRMP,LR,MDP,FLAG,KWH XXXX004094,11,2016/04/11,2016/07/23,FRMP1,LR1,MDP123,E,7040.000 XXXX004094,21,2016/04/11,2016/07/23,FRMP1,LR1,MDP123,E,8434.000 XXXX004094,42,2016/04/11,2016/07/23,FRMP1,LR1,MDP123,E,0.000 XXXX004663,11,2016/04/07,2016/07/18,FRMP1,LR1,MDP123,E,1282.000 XXXX005277,11,2016/04/14,2016/05/26,FRMP5,LR1,MDP123,E,2304.000
etc.
etc.
etc.
</CSVData>
</ReportResults>
<Event severity="Information">
<Code>0</Code>
<Explanation>Success.</Explanation>
</Event>
</ReportResponse>
</Transaction>
</Transactions>
</ase:aseXML>
