SAPS

For details about the SAPS Standalone Power Systems project, see the SAPS Fact Sheets:

SAPS registration and role code

This Release introduces:

A new Registration Category Generating units modelled in the EAAP are categorised into Baseload, Intermediate or Peaking generation groups. called Market SAPS Resource Provider (MSRP) for connecting Generating Units See Relevant Rules or Procedures on a SAPS. It can create and process Change Requests and B2B Business-to-Business. Generic term used to refer to defined business-to-business interactions between participants; excludes interactions between a participant and market systems such as MSATS. Transactions.
A new Role The role a company has with a connection point in CATS. A single company can have more than one role associated with a NMI. Category field for storing the Registration Category, supporting the restriction of connections to the MSRP and SGA Small Generator Aggregator Registration Categories.
Existing SGA Participant IDs’ Role Category populated as SGA.

SAPS DLF code

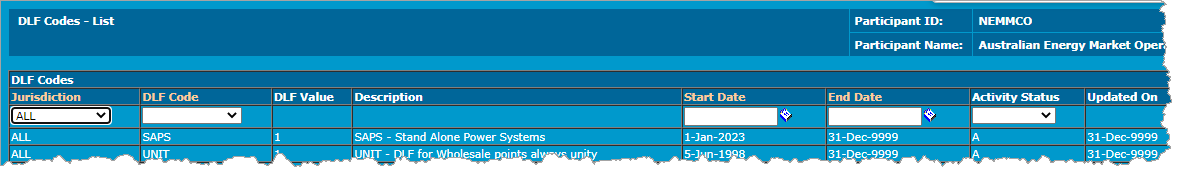

A new SAPS DLF Code with a DLF factor of 1.0 in Codes Maintenance > DLF Codes:

SAPS TNI codes

The TNI Codes:

Are unique for each SAPS and have a structure participants must follow. It is a 4-character alphanumeric code consisting of two parts.
- Part 1: The first character of the SAPS TNI code identifies the adoptive SAPS network:
- Part 2: The next 3 characters, developed in conjunction with AEMO, identify a specific SAPS within an adoptive SAPS network.
Have a unique TNI Code Transmission Node Identity: A four character alpha-numeric code used to identify a virtual transmission node or transmission network connection point. range assigned to each Distribution Network.
Are grouped by Distribution Network.
Are assigned a separate SAPS Profile Area A geographical area comprising a group of one or more TNIs where a single NSLP is calculated. If part of an LNSP local area is located within the local area of another LNSP, that part of the local area of the first LNSP is considered to be part of the profile area of the second LNSP..

The table below identifies each Distribution Network, the assigned Profile Area, and the TNI Code Energy Rules Terms range:

TNI code (1^st character)	Local area network	Profile area
B	Ergon Energy	ERGONSAPS
C	Energex	ENERGEXSAPS
E	Essential Energy	COUNTRYENGYSAPS
F	Ausgrid	ENERGYAUSTSAPS
G	Endeavour Energy	INTEGRALSAPS
H	ActewAGL	ACTEWAGLSAPS
J	Powercor	POWERCORSAPS
K	Ausnet Services	TXUSAPS
L	Jemena	VICAGLSAPS
M	CitiPower	CITIPOWERSAPS
P	United Energy	UNITEDSAPS
R	SAPN	UMPLPSAPS
U	TasNetworks	AURORASAPS

Assigning a SAPS NMI

Step	Who	Task
	DNSP	Engage with AEMO to create a unique TNI Code
	DNSP	Create NMI for the Generating Unit to the SAPS You can create a new SAPS when an existing NMI is being separated from the NEM but not for a new connection point. This is a rules requirement so does not have system validation. Once a SAPS is created a new connection is eligible to connect to an existing SAPS.
	AEMO	Assigns the NMI Classification Code: NREG
	DNSP	Assigns NMIs to a SAPS by updating each End Users NMI Standing Data using Change Requests: CR5050 or CR5051. The minimum attributes to update are: TNI code SAPS TNI code DLF code If a large number of NMIs require transferring, DNSPs can engage AEMO to use the Bulk Change Tool (BCT). For more details, see National Metering Identifier Procedure

SAPs affected change requests

Change reason code	Change request
Create NMI	2000, 2001 2020, 2021 2500, 2501 2520, 2521
Maintain NMI	5050, 5051 5060, 5061

Change reason code

Change request

Create NMI

2000, 2001

2020, 2021

2500, 2501

2520, 2521

Maintain NMI

5050, 5051

5060, 5061

New SAPS CR validations

This Release introduces new validations restricting the transfer of GENERATR NMIs to a SAPS. SGAs and MSRPs SAPS Generating Units are restricted to the NMI Classification Code A code identifying the type of consumer to which a NMI belongs, e.g. large or small wholesale generators.: NREG.

Validation	Change request	Error code
FRMP (MSRP) is only connected to a Generating Unit where the NMI Classification Code = NREG	1000, 1010, 1030, 1040, 5050, 5051, 5060, 5061	1233 Cannot use this CR Code for a NMI with this NMI Classification Code, Registration Category, and Role Category
FRMP (SGA) is not connected to a SAPS NMI	1000, 1010, 1030, 1040, 5050, 5051, 5060, 5061	1232 Cannot use this CR Code for a NMI with this settlement indicator, Registration Category, and Role Category
FRMP (MSRP) is only connected to a SAPS NMI	1000, 1010, 1030, 1040, 5050, 5051, 5060, 5061	1232 Cannot use this CR Code for a NMI with this settlement indicator, Registration Category, and Role Category
SAPS NMI has a SAPS DLF assigned	2000, 2001, 2020, 2021, 2500, 2501, 2520, 2521, 5050, 5051, 5060, 5061	1230 Invalid DLF Code or settlement indicator combination
SAPS NMI does not have an Embedded Network Code	2000, 2001, 2020, 2021, 2500, 2501, 2520, 2521, 5050, 5051, 5060, 5061	1231 A NMI with this settlement indicator cannot be part of an Embedded Network
SAPS NMI cannot have an active DRSP	2000, 2001, 2020, 2021, 2500, 2501, 2520, 2521, 5050, 5051, 5060, 5061	1234 The NMI has an active DRSP

5.8.7 NMI discovery

Participants can use the existing NMI See Relevant Rules or Procedures Discovery to search for SAPS TNIs by using the first character of the SAPS TNI Code.

SAPS standing data quality (SDQ)

This Release has the following updates and new Standing Data Quality (SDQ) reports related to the SAPS project.

AEMO Australian Energy Market Operator sends results of Standing Data Quality checks to Participant IDs:

Every week in the RM29 Participant Standing Data Report with individual results and a summary.
Every month in the RM30 Monthly Snapshot of Participant Performance Report with a summary of each week (no individual results).

Modified: Incorrect DLFs for child NMIs created in MSATS

Field	Details
Query ID	DLFERR_CHILD
Long description	List of Child NMIs created in MSATS believed to have an incorrect DLF Code. Please investigate and correct the DLF code where applicable.
Changed	A child exclusion list, where a child NMI is meant to have a different TNI or DLF from one or more of the parents The start and end dates of the report intersect the start and end dates of the parent and the child The NMI status is A and D Changes for ICF032 Child NMI Standing Data Quality - TNI and DLF Includes the Parent NMI and PARENT DLF so Embedded Network Managers (ENMs) know when a TNI or DLF (or both) of a Child NMI have changed
Unchanged	Consistent with existing reports, there is no link to the data stream table
Data source	CATS
Existing header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI, TNI, CODE, Start_Date, End_Date, Field, DLFVALUE
New header values	ParentNMI, ParentDLF
Status	Active

Modified: Incorrect TNIs for child NMIs created in MSATS

Field	Details
Query ID	TNIERR_CHILD
Long description	List of Child NMIs created in MSATS believed to have an incorrect TNI Code. Please investigate and correct the TNI Code.
Changed	A child exclusion list, where a child NMI is meant to have a different TNI or DLF from one or more of the parents The start and end dates of the report intersect the start and end dates of the parent and the child The NMI status is A and D Changes for ICF032 Child NMI Standing Data Quality - TNI and DLF Includes the Parent NMI and PARENT DLF so Embedded Network Managers (ENMs) know when a TNI or DLF (or both) of a Child NMI have changed
Unchanged	In keeping with the existing reports, there is no link to the data stream table
Data source	CATS
Existing header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI, SDR_Key2, SDR_Key3, Start_Date, End_Date, Field, NMI_Class, TNI ,State
New header values	ParentNMI, ParentTNI
Status	Active

New: SAPS NMI with embedded network code

Field	Details
Query ID	SAPSENC
Role	ENM
Long description	Embedded Networks are not valid within a SAPS this NMI has an Embedded Network Code assigned and needs correcting
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, EmbNetParent_Code, EmbNetChild_Code, Start_Date, End_Date, Field, TNI_Code, NMI_Class, NMI_Status, DLF_Code, Value5
Status	Active
Generation logic	Identify NMIs with a TNI code linked to a SAPS Profile Area Report each NMI having an Embedded Network Parent or Child Code or both

New: MSRP (FRMP) assigned to non-SAPS TNI

Field	Details
Query ID	NONSAPSMSRP
Role	FRMP
Long description	A NMI attached to a non-SAPS TNI has an MSRP Participant ID assigned as the FRMP MSRPs are only eligible to be the FRMP for a SAPS NMI
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, SDR_Key2,SDR_Key3, Start_Date, End_Date, Field, NMI_Class, Settle_Ind, TNI_Code, Role_Category, LNSP
Status	Active
Generation logic	Identify NMIs with a TNI code linked to a NEM or ISO Profile Area Report each NMI having a FRMP assignment where the FRMP Role_category = MSRP

New: SGA or MSRP (FRMP) assigned to GENERATR NMI

Field	Details
Query ID	NOTELGEN
Role	FRMP
Long description	A NMI with a NMI Class Code of GENERATR has either an SGA or MSRP Participant ID assigned as the FRMP. SGAs and MSRPs are not eligible to be FRMPs for GENERATR NMIs
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, SDR_Key2,SDR_Key3, Start_Date, End_Date, Field, NMI_Class, Settle_Ind, TNI_Code, Role_Category, LNSP
Status	Active
Generation logic	Identify NMIs having a FRMP assigned where the FRMP’s Role_category = MSRP or SGA Report each NMI where the NMI Class Code = GENERATR

New: SGA (FRMP) assigned to a SAPS NMI

Field	Details
Query ID	SAPSSGA
Role	FRMP
Long description	A NMI attached to a SAPS TNI has an SGA Participant ID assigned as the FRMP. SGAs are not eligible to be a FRMP for a SAPS NMI
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, SDR_Key2,SDR_Key3, Start_Date, End_Date, Field, NMI_Class, NMI_Status,TNI_Code, Role_Category, LNSP
Status	Active
Generation logic	Identify NMIs with a TNI code linked to a SAPS Profile Area Report each NMI having a FRMP assignment where the FRMP Role_category = SGA

New: Non-SAPS DLF assigned to a SAPS NMI

Field	Details
Query ID	NONSAPSDLF
Role	LNSP
Long description	The NMI is assigned a non-SAPS DLF Code connected to a TNI Code in a SAPS Area Correct the DLF Code to the SAPS DLF Code
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, sdr_key_2, sdr_key_3, Start_Date, End_Date, Field, TNI_Code, NMI_Class, NMI_Status, DLF_Code, Value5
Status	Active
Generation logic	Identify NMIs with a TNI code linked to a SAPS Profile Area Report each NMI where the DLF code is NOT = SAPS

New: SAPS DLF assigned to non-SAPS NMI

Field	Details
Query ID	SAPSDLF
Role	LNSP
Long description	The NMI is assigned a DLF Code of SAPS connected to a TNI Code not in a SAPS Area Correct the DLF Code
Data source	CATS
Header values	QueryId, Stat_Date, ParticipantId, RoleId, Source, Table, NMI_ID, sdr_key_2, sdr_key_3, Start_Date, End_Date, Field, NMI_Class, Settle_Ind, DLF_Code, TNI_Code, Profile_Area
Status	Active
Generation logic	Identify NMIs with a TNI code linked to a NEM or ISO Profile Area Report each NMI where the DLF code = SAPS

New: SAPS NMI with embedded network code

Field	Details
Query ID	SAPSENP
Role	LNSP
Long description	Embedded Networks are not valid within a SAPS this NMI has an Embedded Network Code assigned and needs correcting.
Data source	CATS
Header values	QueryId,Stat_Date,ParticipantId,RoleId,Source,Table,NMI_ID,EmbNetParent,EmbNetChild,Start_Date,End_Date, Field, TNI_Code,NMI_Class,NMI_Status,DLF_Code, Value5
Status	Active
Generation logic	Identify NMIs with a TNI Code linked to a SAPS Profile Area Report each NMI having an Embedded Network parent or child code or both

New: SAPS TNI without an active SAPS generation connection point

Field	Details
Query ID	SAPSNOGEN
Role	LNSP
Long description	There is no active SAPS Generation Connection Point assigned to the SAPS TNI supplying energy to the End User Connection Points
Data source	CATS
Header values	QueryId,Stat_Date,ParticipantId,RoleId,Source,Table,NMI_ID,sdr_key_2,sdr_key_3,Start_Date,End_Date, Field, TNI_Code,NMI_Class,NMI_Status,Value4, Value5
Status	Active
Generation logic	Identify a TNI Code linked to a SAPS Profile Area Report each TNI without an NREG NMI Classification Code assigned

New: SAPS TNI without an active SAPS End User Connection Point

Field	Details
Query ID	SAPSNONMI
Role	LNSP
Long description	There are no active SAPS End User Connection Points assigned to the SAPS TNI where an active SAPS Generator Connection Point exists
Data source	CATS
Header values	QueryId,Stat_Date,ParticipantId,RoleId,Source,Table,NMI_ID,sdr_key_2,sdr_key_3,Start_Date,End_Date, Field, TNI_Code,NMI_Class,NMI_Status,Value4, Value5
Status	Active
Generation logic	Identify the TNI Code linked to a SAPS Profile Area Report each TNI having only NMIs assigned with an NREG NMI Classification Code

RM51 Regulated SAPS Generator Reconciliation report

A new RM51 Regulated SAPS Generator Reconciliation report assists MSRPs (FRMPs) to reconcile their allocated energy within a settlement case.

RM51 report details

Purpose	Provides MSRP (FRMP) participants with the energy volume determined for contribution by the SAPS Generating Unit (Unit) for each individual Regulated SAPS
Content	Allocation of Energy values are only provided for approved settlement cases. The Energy values determined for each Unit consists of: TOTAL_LOAD: The aggregate net Energy value or all SAPS End User NMIs for each Trading Interval When there is null Metering Data for all SAPS End User NMIs, the NMI is excluded from the TOTAL_LOAD calculation CONT_RATIO: The proportion of Energy generated by a Unit contributing to TOTAL_LOAD for each Trading Interval Where multiple Units contribute to TOTAL_LOAD, the CONT_RATIO for each Unit is determined by the proportion of generated Energy contributed by each unit for each Trading Interval Where a single unit supports TOTAL_LOAD, the CONT_RATIO equals 1 for each Trading Interval Where a unit consumes Energy, the CONT_RATIO equals 0. Where null Metering Data is provided for a SAPS Generating Unit the CONT_RATIO is set to 0 for the Trading Intervals where there is no metering interval data Where null Metering Data is provided for all Units the CONT_RATIO is proportioned equally across each active Unit CALC_ALLOC: The calculated Metering Data for a Unit for each Trading Interval is determined by multiplying the CONT_RATIO by the TOTAL_LOAD
Request	Anytime from: MSATS web portal FTP API Subscribe to receive the report automatically after each approved Settlement Case by contacting AEMO’s Support Hub
Delivery	Participant Outbox
Retention	13 months in FTP archive folder
Context type	MDMTSettlementCaseDetailsReportParameters
Priority	Medium
Role	FRMP
Format	Zipped aseXML compliant XML message with csv payload
Row limit	30,000
Schema version	r43
User rights access	Regulated SAPS Generator Reconciliation Interactive entity Batch A right type assigned to a participant user by their participant administrator to access a Batch (file) application entity

Input parameters

Field	Description	Required
Field	Description	Web	Schema
Report name	MDMTSettlementCaseDetailsReportParameters	No	Yes
Settlement Case ID	To find a Case ID, see Settlement Scenarios in the MSATS Web Portal	Yes	Yes
Profile Area	The Profile Area TNI	Optional	Optional
TNI	The TNI Code	Optional	Optional
Select NMIs starting with	Use to enable a faster search by reducing the number of NMIs displayed	Optional	Optional
NMI	The National Metering Identifier	Optional	Optional

Output

Field	Description
Case ID	The Settlement Case ID
Settlement Type	Preliminary, Final, Revision 1, Revision 2, Special revised
Profile Area	The Profile Area code
TNI	The TNI Code
NMI	The National Metering Identifier
Settlement Date	The Settlement Date
Creation Date	The Creation Date
Null Data	Indicates if the calculated value includes null Metering Data
Data Type	Total_Load, Cont_Ratio, Calc_Alloc
Period 001 to Period 288	Data for Period 1 through to Period 288
Report sequence number	Required when the report exceeds the row limit For details, see Report Sequencing (required MarketNet access)

RM51 example

This is an early draft of the RM51 report. The design may change by the Release Dates.

Report delivery

Participants can request reports using the following interfaces:

For details about MSATS reports, see Reports and Alerts. Requires access to MarketNet AEMO's private VPN for Registered Participants. A network of more than 300 registered participants in the National Electricity Market, including market generators, transmission network service providers, distribution network service providers, and market customers..
