Service Order types
ConnectedMeters
Purpose - Parent container for list of connected meters.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
SerialNumber |
minOccurs=”0”, maxOccurs=”unbounded” |
MeterSerialNumber |
Electricity_r41 |
ControlChannel
Purpose – Identify control equipment channel.
Detail: Maximum of 12 characters per line.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ControlChannel |
maxLength value=”12” xsd:string ≤ 12 chars |
simple |
Electricity_r41 |
ControlEquipment
Purpose – Define the structure of control equipment details.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ControlEquipment |
sequence |
complex |
Electricity_r41 |
|
ConnectedMeters |
minOccurs=”0” |
Electricity_r41 |
|
|
ControlChannel |
minOccurs=”0” |
Electricity_r41 |
|
|
ControlEquipmentNumber |
minOccurs=”0” |
Electricity_r41 |
|
|
ControlEquipmentType |
minOccurs=”0” |
ElectricityEnumerations |
ControlEquipments
Purpose – Parent container for list of control equipment.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ControlEquipments |
minOccurs=”0” |
Electricity_r41 |
ControlEquipmentSerialNumber
Purpose – Identify control equipment serial number.
Detail: Maximum of 12 characters per line.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ControlEquipmentSerialNumber |
maxLength value=”12” xsd:string ≤ 12 chars |
simple |
Electricity_r41 |
DeviceSerialNumber
Purpose – Provide Device Serial Number
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
DeviceSerialNumber |
maxLength value=”12” xsd:string |
simple |
Electricity_r41 |
ElectricityMeterRegisterConfiguration
Purpose: container for information relating to multiple electricity meter registers associated with a meter.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ElectricityMeterRegisterConfiguration |
sequence |
complex |
Electricity_r41 |
|
Register |
maxOccurs=”unbounded” |
Electricity_r41 |
ElectricityMeterRegisterDetail
Purpose: container for information about a register within an electricity meter.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ConsumptionType |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
ControlledLoad |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
Demand1 |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
Demand2 |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
DialFormat |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
DirectionIndicator |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
HighLowConsumption |
nillable=”true” minOccurs=”0” |
|
Electricity_r36 |
|
Multiplier |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
NetworkAdditionalInformation |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
NetworkTariffCode |
nillable=”true” minOccurs=”0” |
NetworkBilling_r34 |
|
|
PreviousReading |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
RegisterID |
minOccurs=”0” |
Electricity_r36 |
|
|
RegisterIndexValue |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
Status |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
Suffix |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
TimeOfDay |
nillable=”true” minOccurs=”0” |
Electricity_r36 |
|
|
UnitOfMeasure |
nillable=”true” minOccurs=”0” |
Electricity_r36 |

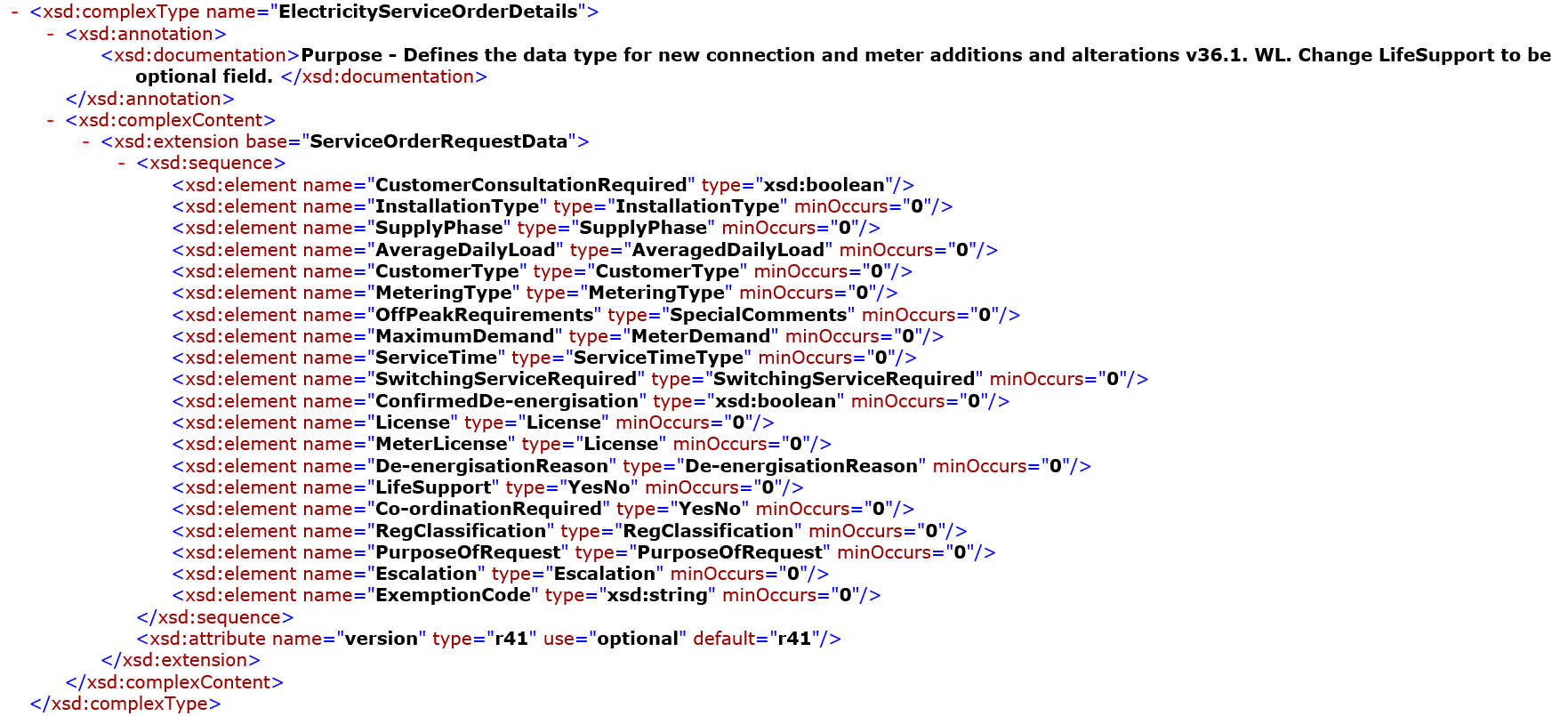

ElectricityServiceOrderDetails
Purpose: Defines the data type for new connection and meter additions and alterationsv36.1. WL. Change LifeSupport is an optional field.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
CustomerConsultationRequired |
|
xsd:boolean |
Electricity_r41 |
|
InstallationType |
minOccurs=”0” |
InstallationType |
Electricity_r41 |
|
SupplyPhase |
minOccurs=”0” |
SupplyPhase |
Electricity_r41 |
|
AverageDailyLoad |
minOccurs=”0” |
AverageDailyLoad |
Electricity_r41 |
|
CustomerType |
minOccurs=”0” |
CustomerType |
Electricity_r41 |
|
MeteringType |
minOccurs=”0” |
MeteringType |
Electricity_r41 |
|
OffPeakRequirements |
minOccurs=”0” |
SpecialComments |
Electricity_r41 |
|
MaximumDemand |
minOccurs=”0” |
MeterDemand |
Electricity_r41 |
|
ServiceTime |
minOccurs=”0” |
ServiceTimeType |
Electricity_r41 |
|
SwitchingServiceRequired |
minOccurs=”0” |
SwitchingServiceRequired |
Electricity_r41 |
|
ConfirmedDe-energisation |
minOccurs=”0” |
xsd:boolean |
Electricity_r41 |
|
License |
minOccurs=”0” |
License |
Electricity_r41 |
|
MeterLicense |
minOccurs=”0” |
License |
Electricity_r41 |
|
De-energisationReason |
minOccurs=”0” |
De-energisationReason |
Electricity_r41 |
|
LifeSupport |
minOccurs=”0” |
YesNo |
Electricity_r41 |
|
Co-ordinationRequired |
minOccurs=”0” |
YesNo |
Electricity_r41 |
|
RegClassification |
minOccurs=”0” |
RegClassification |
Electricity_r41 |
|
PurposeOfRequest |
minOccurs=”0” |
PurposeOfRequest |
Electricity_r41 |
|
Escalation |
minOccurs=”0” |
Escalation |
Electricity_r41 |
|
ExemptionCode |
minOccurs=”0” |
xsd:string |
Electricity_r41 |
InstallationType
Purpose: Defines a list of valid Installation Type.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
InstallationType |
xsd:string enumerated list (see InstallationType list) |
simple |
Electricity_r41 |
Table 67 InstallationType list
|
Overhead To Underground Mains. |
|---|
|
Overhead. |
|
Transformer Ground Level. |
|
Transformer Overhead. |
|
Underground To Overhead Mains. |
|
Underground. |
InstrumentTransformer
Purpose – Define the structure of instrument transformer details.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
TransformertNumber |
minOccurs=”0” |
Electricity_r41 |
|
|
TransformerRatio |
minOccurs=”0” |
Electricity_r41 |
|
|
TransformerType |
minOccurs=”0” |
ElectricityEnumerations |
InstrumentTransformers
Purpose – Parent element for list of instrument transformers.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
InstrumentTransformers |
sequence |
complex |
Electricity_r41 |
|
InstrumentTransformer |
maxOccurs=”unbounded” |
Electricity_r41 |
InstrumentTransformerSerialNumber
Purpose – Identify instrument transformer serial number.
Detail: Maximum of 12 characters per line.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
InstrumentTransformerSerialNumber |
maxLength value=”12” xsd:string ≤ 12 chars |
simple |
Electricity_r41 |
NetworkDevice
Purpose – Define the structure of network device details.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
NetworkDeviceNumber |
minOccurs=”0” |
Electricity_r41 |
|
|
NetworkDeviceLocation |
minOccurs=”0” |
ElectricityEnumerations |
NetworkDevices
Purpose – Parent container for list of network devices.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
NetworkDevices |
sequence |
complex |
Electricity_r41 |
|
NetworkDevice |
maxOccurs=”unbounded” |
NetworkDevice |
Electricity_r41 |
ServiceOrderSubType
Purpose: Defines a list of valid Service Order A request to perform specified work, see B2B Procedures: Service Order Process. types supported by the participants.
For use of ServiceOrderSubType, see B2B Business-to-Business. Generic term used to refer to defined business-to-business interactions between participants; excludes interactions between a participant and market systems such as MSATS. Procedure: Service Order Process.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ServiceOrderSubType |
xsd:string enumerated list (see Table 23 ServiceOrderSubType list ) |
simple |
Electricity_r41 |
Figure 125 Table 23 ServiceOrderSubType list
|
After Disconnection For Non-Payment |
|---|
|
Allocate NMI |
|
Change Timeswitch Settings |
|
Check Read |
|
Disconnect at Pillar-Box Pit or Pole-Top |
|
Establish Permanent Supply |
|
Establish Temporary In Permanent |
|
Establish Temporary Supply |
|
Exchange Meter |
|
Final Read |
|
Install Controlled Load |
|
Install Meter |
|
Local Meter Disconnection |
|
Meter Investigation-Inspect |
|
Meter Investigation-Test |
|
Meter Reconfiguration |
|
Move Meter |
|
Move-in |
|
New Reading Required |
|
Physical Visit |
|
Recipient Discretion |
|
Remote |
|
Remove Fuse |
|
Remove Meter |
|
Reseal Device |
|
Retrospective Move-in |
|
Supply Abolishment |
|
Supply Alteration |
|
Tariff Change |
|
Temporary Isolation |
|
Temporary Isolation-Group Supply |
ServiceOrderType
Purpose: Defines a list of valid Service Order types supported by the participants.
For use of ServiceOrderType, see B2B Procedure: Service Order Process.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ServiceOrderType |
xsd:string enumerated list (see ServiceOrderType list) |
simple |
Electricity_r41 |
Table 68 ServiceOrderType list
|
De-energisation |
|---|
|
Metering Service Works |
|
Miscellaneous |
|
Re-energisation |
|
Special Read |
|
Supply Service Works |
ServiceTimeType
Service Order Service Time Type
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ServiceTimeType |
xsd:string enumerated list (see ServiceTimeType list) |
simple |
Electricity_r41 |
|
Any Time |
Business Hours |
Non-Business Hours |
|---|
SORDResponseCode
Purpose: Defines a list of valid response code for different types of service orders.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
SORDResponseCode |
xsd:string enumerated list ( SORDResponseCode list) |
simple |
Electricity_r41 |
Table 70 SORDResponseCode list
|
Customer On-site |
|---|
|
Customer Prevented |
|
De-energisation not Completed Due to a Re-energisation |
|
Documentation not Provided |
|
Inadequate infrastructure |
|
Initiator Cancellation |
|
Life Support |
|
Meter not Retrieved |
|
Meter Reading Only Undertaken Due to Prior Re-energisation |
|
Metering not compatible with proposed Tariff Change |
|
Metering Problem |
|
New Customer On-site |
|
No Comms |
|
No Supply |
|
Other |
|
Reading Problem - other |
|
Recipient Cancellation |
|
Request Submitted by Another Initiator |
|
Retailer Cancellation |
|
Sensitive Load |
|
Service Provider Cancellation |
|
Shared Supply Point |
|
Site Already Energised |
|
Tariff Change not Approved |
|
Unable to Access |
|
Unknown Connection Status |
|
Unknown Load |
|
Unsafe |
SwitchingServiceRequired
Purpose: Identify a remote service ID reference.
|
Field |
Restrictions |
aseXML |
Schema |
|---|---|---|---|
|
ServiceRequestID |
xsd:string maxLength value=”80” |
simple |
Electricity_r41 |
